| 產品型號 | MTR070WV60A-V1 |
| 處理器 | Cortex-A8架構，主頻1.0GHZ |
| 內存 | 512MB 的 DDR3 |
| Flash | 256MB 的 NandFlash |
| 屏幕尺寸 | 7 inch（英寸） |
| 分辨率 | 800x480 |
| 顯示 | 寬溫型,64K色或26萬色 |
| LED背光 | 壽命＞25000小時 |
| 觸摸屏 | 四線電阻式觸摸屏（Wince系統內已集成驅動） |

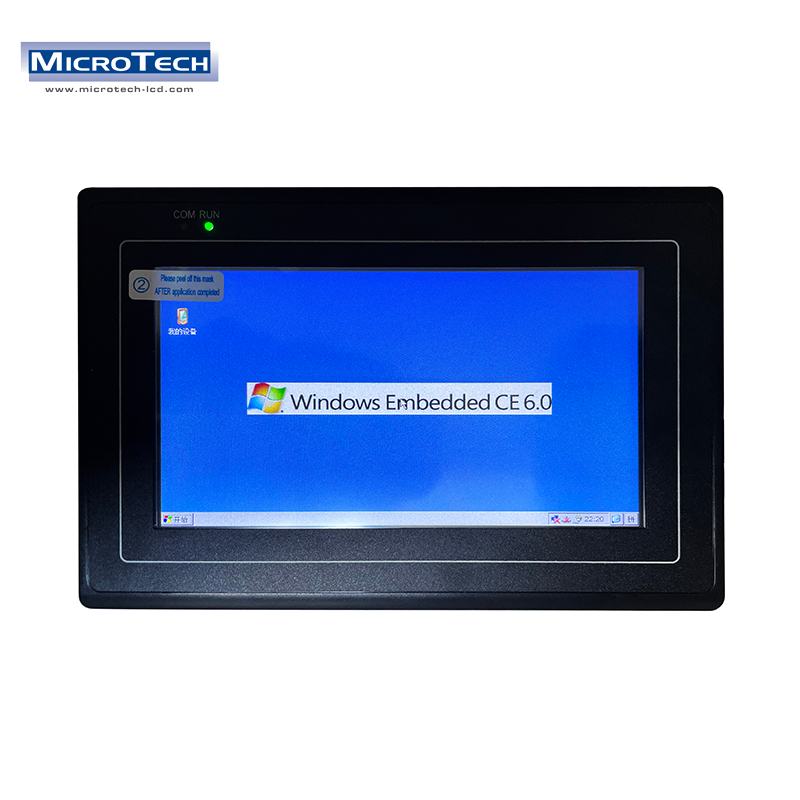

| 操作系統 | Windows CE 6.0 R3 |
| 防護等級 | IP65（前面板） |
| 工作條件 | 12-24V DC, 600mA |
| 工作溫度 | ?10~55℃?20~80℃ （保存溫度） |
| 工作濕度 | 10~90%RH |

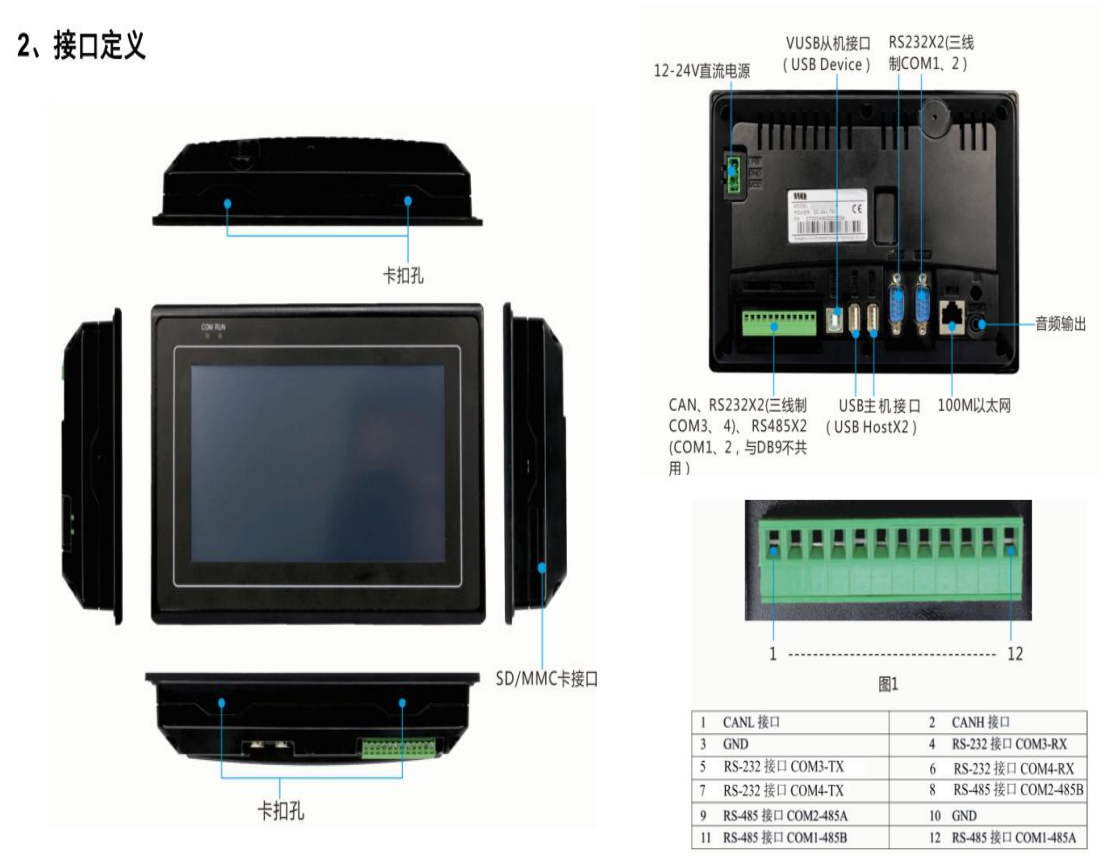

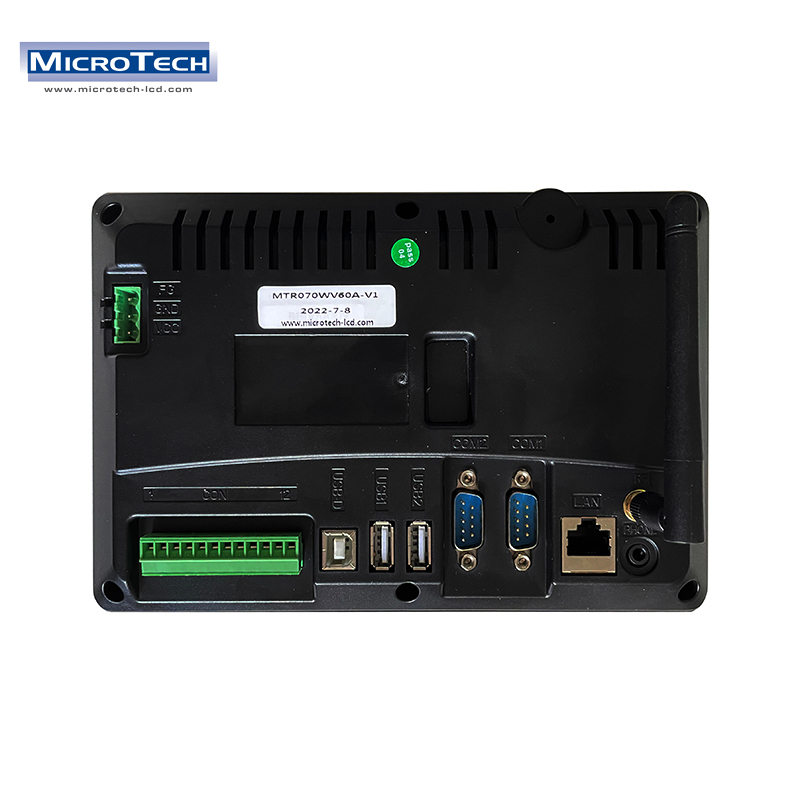

| 硬件接口 | 四路3線RS-232串口 （C0M1,COM2,COM3, COM4）,其中二路（C0M1, COM2）可以作為RS-485總線接口伸口可選帶隔離模式） |
| 一輔隔離的CAN總線接口。（選配） | |
| -用內置的W幣接口。（選配） | |
| 一珞USB Device接口,支持Activesync和PC機同步通信和聯調應用程序 | |
| 兩路USB Host接口,支持鼠標、鍵盤、U盤等設備 | |
| 一用100M的以煙絡接口 | |
| SD/MMC接口，支持SD卡和MMC卡 | |
| DC12V-24V,帶隔離工業電舫案，可靠性更高 | |
| 結構 | 塑料外殼 |

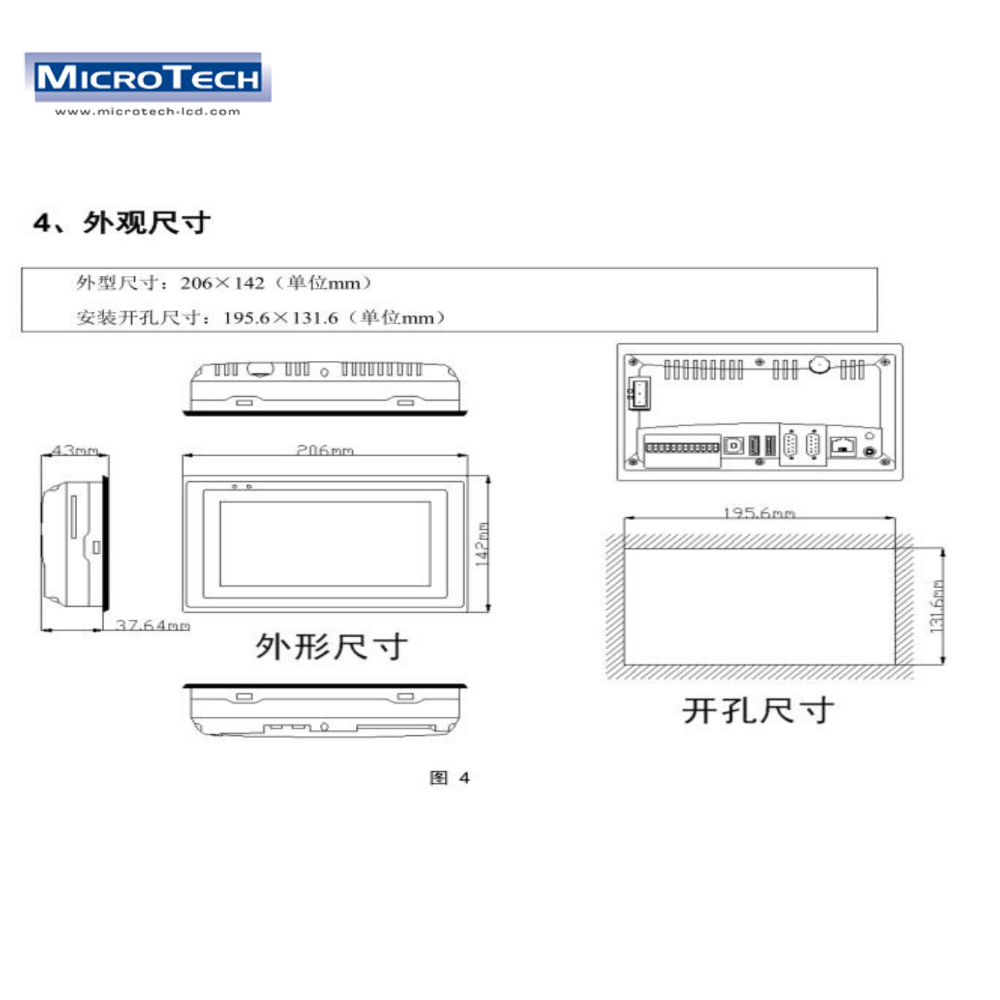

| 面板尺寸 | 206.00x142.00 (mm) |
| 開孔尺寸 | 195.60x131.60 (mm) |
| 注意 | 串口連接時，兩臺設備的GND接地必須隨連接，避免燒壞串口芯片影響通信。 |
| Product number | MTR070WV60A-V1 |
| Processor | Cortex-A8 architecture, clocked at 1.0GHZ |
| Memory | 512MB of DDR3 |
| Flash | 256MB of NandFlash |
| Screen size | 7 inches |
| Resolution | 800x480 |
| Display | Wide temperature type, 64K colors or 260,000 colors |
| LED backlight | Life > 25000 hours |
| Touch screen | Four-wire resistive touch screen (integrated driver in Wince system) |
| Operating system | Windows CE 6.0 R3 |
| Protection class | IP65 (front panel) |
| Working conditions | 12-24V DC, 600mA |
| Operating temperature | ?10~55℃?20~80℃ (Storage temperature) |
| Working humidity | 10~90%RH |
| Hardware interface | Four-way 3-wire RS-232 serial ports (C0M1, COM2, COM3, COM4), two of which (C0M1, COM2) can be used as RS-485 bus interface extensions (optional with isolation mode) |
| A secondary isolated CAN bus interface. (optional) | |
| -Use the built-in W coin interface. (optional) | |
| One USB Device interface, support Activesync and PC synchronous communication and joint debugging application | |
| Two-way USB Host interface, support mouse, keyboard, U disk and other devices | |
| One use 100M Ethernet interface | |
| SD/MMC interface, support SD card and MMC card | |
| DC12V-24V, with isolated industrial electric boat case, higher reliability | |
| Structure | plastic shell |
| Panel size | 206.00x142.00 (mm) |
| Hole Size | 195.60x131.60 (mm) |
| Notice | When the serial port is connected, the GND ground of the two devices must be connected together to avoid burning the serial port chip and affecting the communication. |
